JE60-500

JE60-500

Hire

/ Day

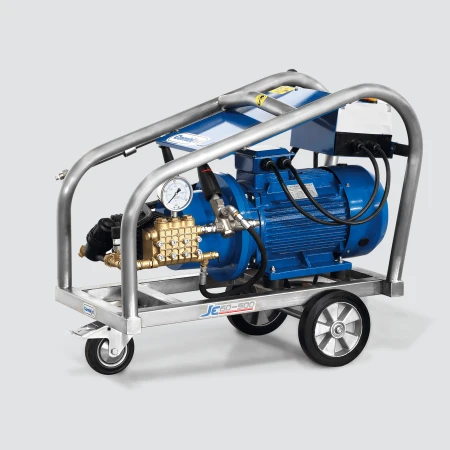

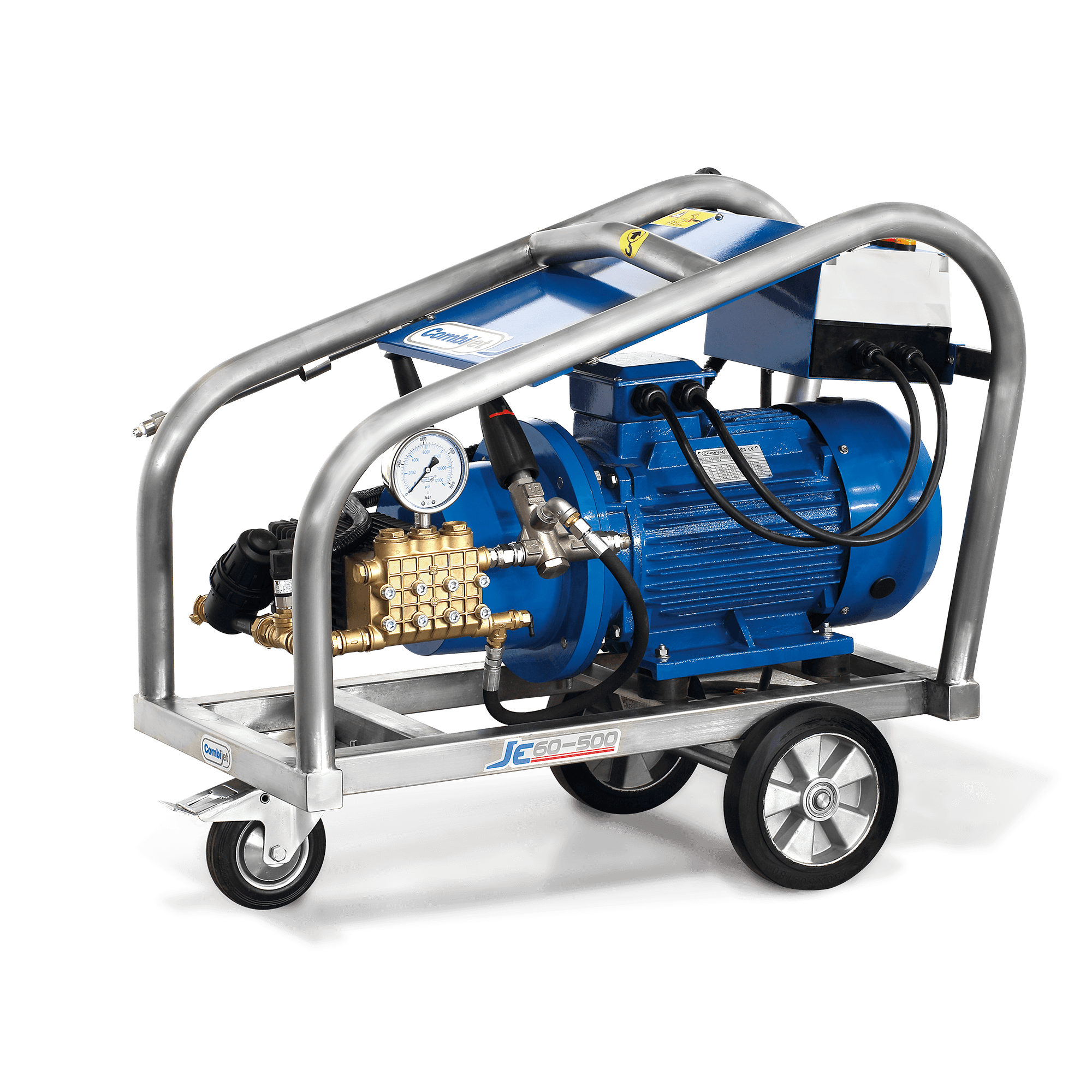

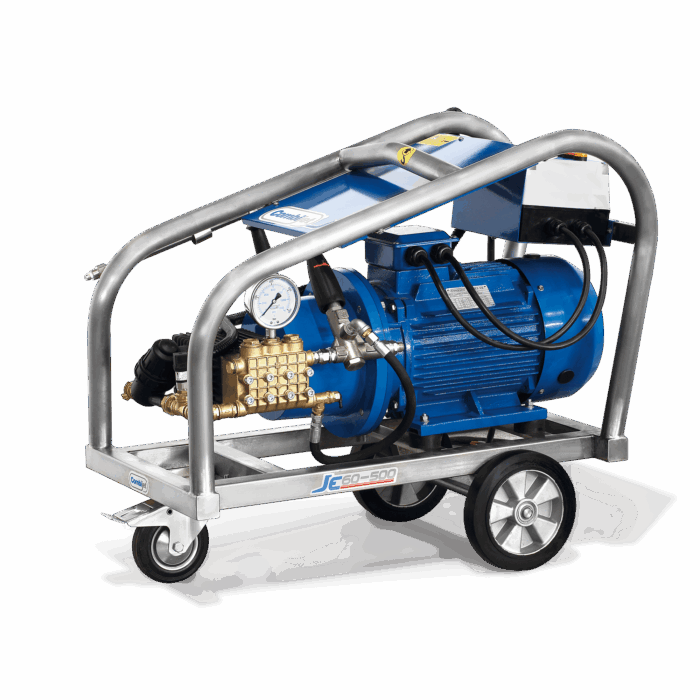

The Combijet JE60-500 Electric High Pressure Water Jet Cleaner (500 bar / Electric Driven 50/60Hz) is very suited for industrial strength cleaning purposes within the maritime and construction sectors; at cement plants, aluminium plants, mines, and other such heavy duty industries.

It is highly effective in removing hard dirt from a variety of surfaces including storage tanks, pipes, drums, floors and walls. It can also deal with the removal of tough non-water soluble dirt, loose paint and rust from the decks, hulls, cargo holds and structures of marine vessels; and get rid of soil, clay and concrete residue from machinery, chains, mixing shafts and stirrer vessels. Further, the JE60-500 can remove loose paint, latex, emulsions and labels from containers and drums as well as rid ready-mix trucks and pumps of fresh concrete deposits.

The JE60-500 is considered by many to be the king of ultra-high pressure jet cleaning machines.

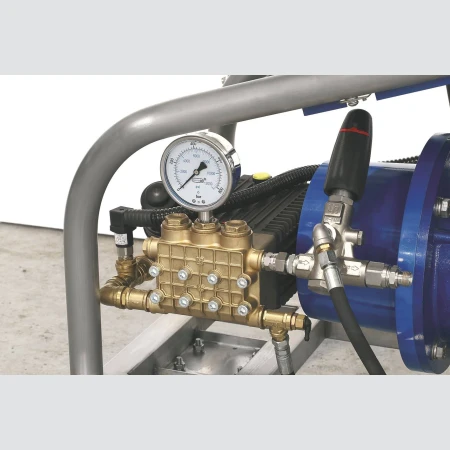

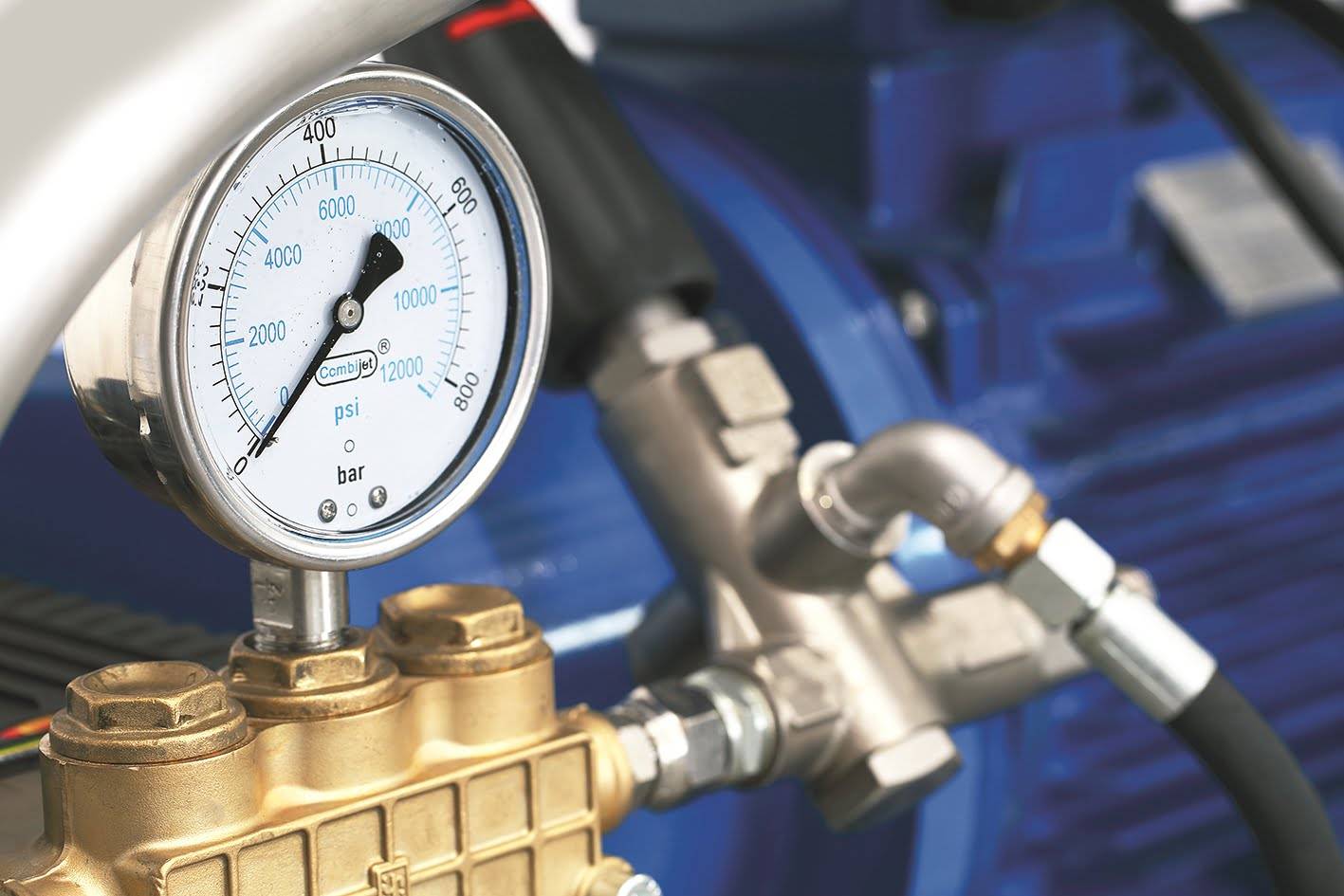

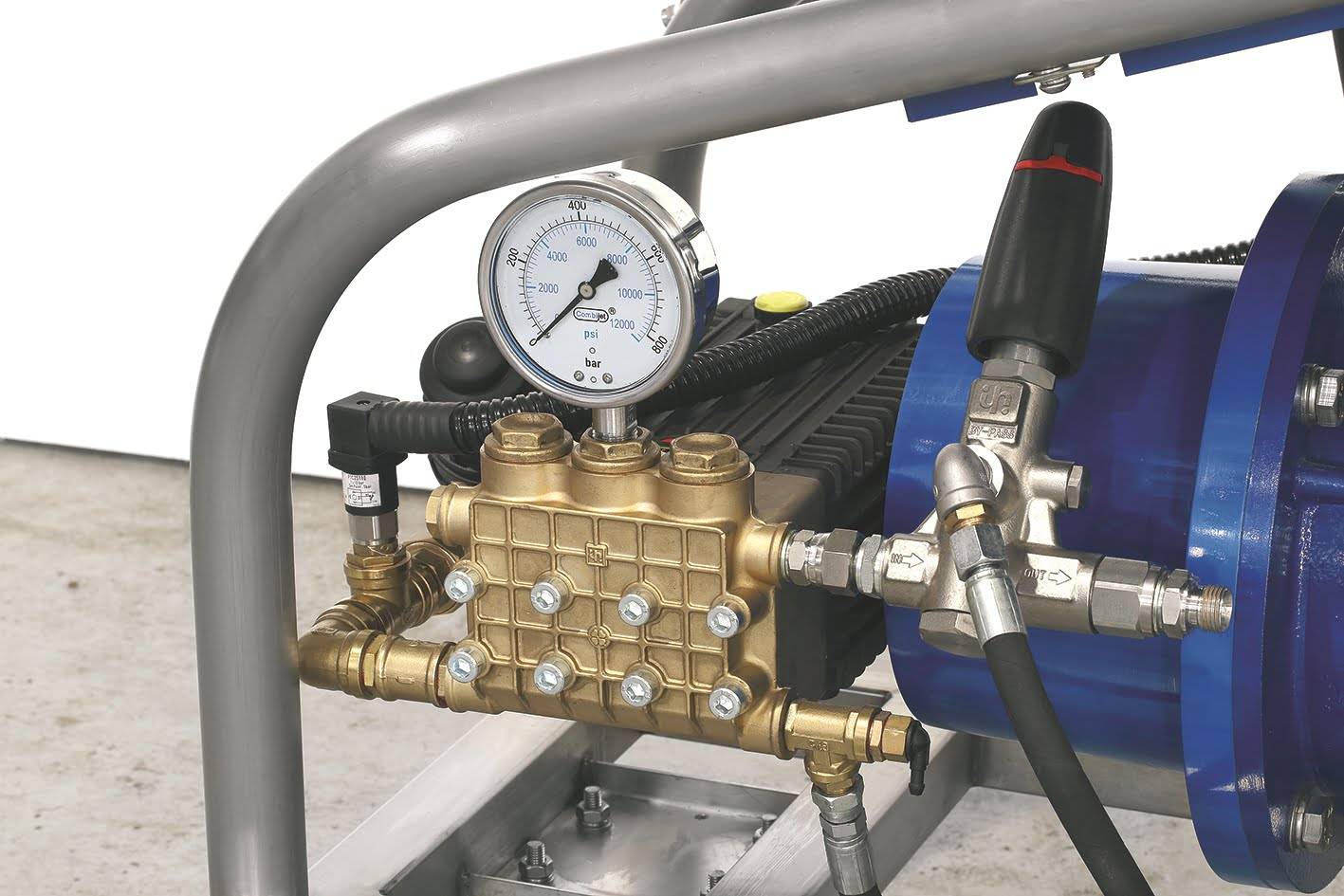

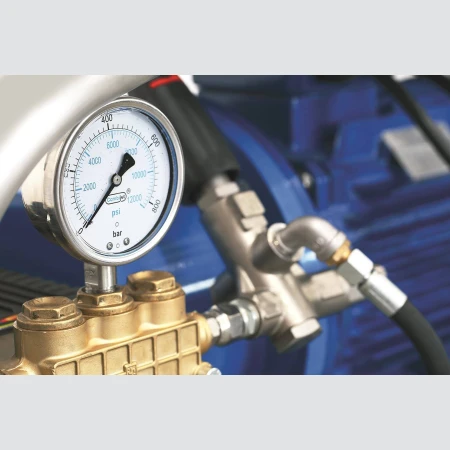

This is primarily due to its unique manual pressure regulator valve, a standard option on this machine, which allows its operator to easily adjust the pressure from 150 to 500 bar by hand; a thermos-mechanical valve which protects the machine pump from overheating by opening to release heated water when temperatures rise too high, thereby cooling the pump; and coupling between the pump and the motor which ensures full protection of the motor and pump shaft, while at the same time absorbs any vibration from the system.

The JE60-500 is also equipped with a 10 meter long oil resistant electric cable with plug; a 20 meter high pressure hose with female ends BSP ½; a trigger operated gun with c/w 1m lance; a fan jet nozzle (non-rotary); a galvanised base and frame; solid wheels and brake system; and a stainless steel handle.

Download Brochure

Specifications

PUMP SPECIFICATIONS
Working Pressure	500 bar / 7250 PSI
Flow Rate (@50Hz)	16 LPM / 4.2 GPM
Flow Rate (@60Hz)	19 LPM / 5.0 GPM
ELECTRICAL SPECIFICATIONS
Power Motor	15 kW / 20 HP
Amperage	21.65 A
RPM (@50Hz)	1450
RPM (@60Hz)	1750
Power Supply	3 Phase 380-440V 50Hz/60Hz
Machine Dimensions (LXWXH)	1070 X 570 X 900 mm
Weight	245 Kg

Features

Electric Cable: 10 meter oil resistant with plug

Manual Pressure Regulating Valve

Thermo-mechanical valve to protect the valve from high temperature

Operator and spares Manual

Solid wheels and brake system

Stainless steel frame SS 316

Standard Equipment

Cart

Hire

Specifications

Features

Standard Equipment

High Pressure Hose 500 Bar

Trigger Gun with Lance 500 Bar

Optional Accessories

High Pressure Hose 500 Bar

NIPPLE – HOSE CONNECTOR 500 BAR

Orbital Rotating Nozzle

Protective Apron 500 Bar

Protective Boots 500 Bar

Protective Gloves 500 Bar

Protective Overall 500 Bar

Two Stage Filtration with Sensor
