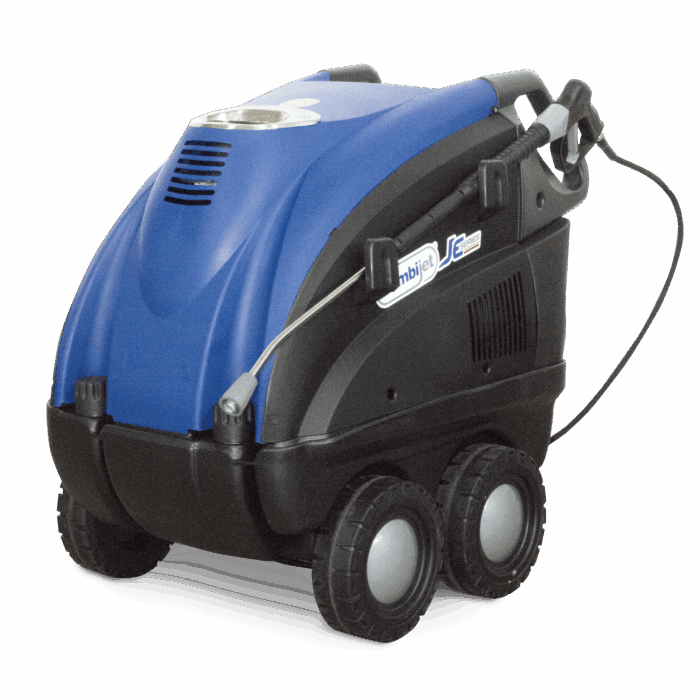

PUMP SPECIFICATION | JE30-1211 |
---|---|
Working Pressure | 30-110 bar / 435-1595 PSI |
Max. Pressure | 150 bar / 2175 PSI |
Flow rate | 330-660 l/h / 1.52-2.91 GPM |
Max. inlet temperature | 40o C |
Max. outlet temperature | 140o C |
MOTOR SPECIFICATION | |
Electric Motor | 3 kW / 4 HP |
RPM | 1450 @ 50 Hz |
Power Supply | 1 phase 230 V 50Hz |
MACHINE SPECIFICATION | |
Diesel tank | 18 l / 4.8 gal |
Detergent tank | 3.0 l / 0.79 gal |
Fuel consumption | 4.72 l/h / 1.25 gal/h |
Heat output | 58 kW |
MACHINE DIMENSIONS (LXWXH) | 125 X 69 X 89 cm |
Weight | 169 kg / 372 lbs |
Electrical Motor: 4-pole with thermal protection
Three ceramic coated pistons, brass linear pump head with built-in bypass valve
Low voltage and delayed Total Stop
Suction and delivery S/S valves
Vertical burner with high thermal efficiency
Temperature regulation gauge, with high sensitivity stainless steel sensor
Low fuel lamp and cut-off
Safety valve
Detergent built-in tank for indirect suction
Glycerin pressure gauge
Auxiliary motor for burner air cooling and mechanical two ways fuel pump
Electric Cable: 5 meter with plug
High pressure hose: 10 meter
Gun: Trigger operated gun
Lance with straight or flat jet nozzle
Operator and spares manual
