JD90-500/30

Hire
  • / Day

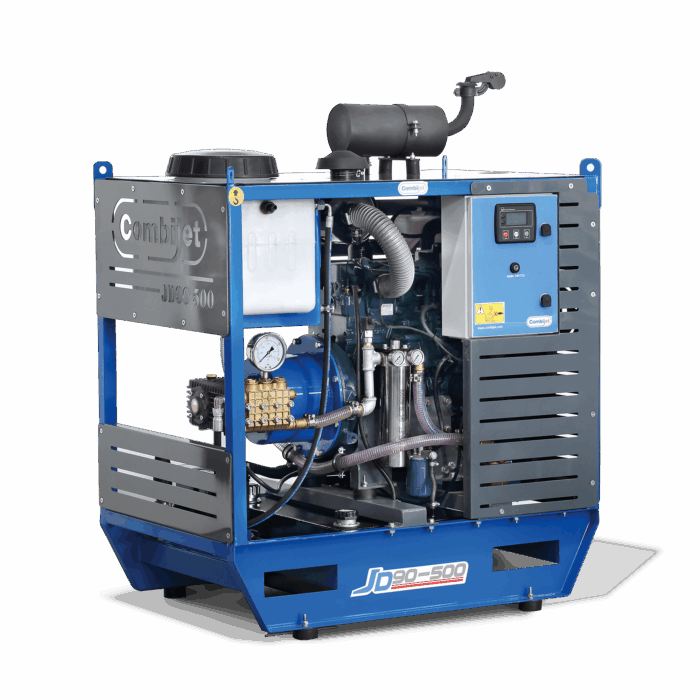

The Combijet JD90-500/30 is a Diesel High Pressure Water Jet Cleaner with Kubota Diesel engine that is highly effective machine for high pressure cleaning within heavy industries.
Aside from handling the removal of hard dirt from a range of surfaces including storage tanks, pipes, drums, structures, floors and walls, it can also eliminate tough dirt such as soil, clay and concrete residue from machinery, chains and mixing shafts.

Additionally, the JD90-500/30 can remove loose paint, latex, emulsion and labels from containers and drums; clean weather dirt from surfaces of buildings; and eradicate fresh concrete deposits from ready mix trucks and pumps.

PUMP SPECIFICATIONS
Working Pressure 500 bar / 7250 PSI
Flow Rate 29 LPM / 7.66 GPM
ENGINE SPECIFICATIONS
Type Kubota Industrial  4 Cylinder
Power hp 28/21
Power kW 54.9kW & 2600 Rpm
Machine Dimensions (LXWXH) 1550 x 1100 x 1250 mm
Approx. Weight 800 Kg

Manual Pressure Regulating Valve (Free of Charge)
Note: Enables the adjustment of pressure from 150 bar up to 500 bar by hand
High pressure hose: 20m with female ends BSP ½
Gun: Trigger operated gun
Lance: 800mm length
Nozzle: Fan Jet nozzle
Thermo-mechanical valve to protect the valve from high temperature
Flexible coupling between Pump and Motor, for maximum component protection
Control Panel, with Start/Stop switch, and Indicators for monitoring engine parameters (engine oil, temperature, battery, etc.)
Feed Pump 1.8 bar
Operator and spares Manual
Galvanised stationary frame, with forklift pockets and lifting points
Water Tank 50 ltr
Epoxy Paint System 2 component
Primer Interzinc 22/ Inorganic Zinc Rich Silicate
Intermediate coat – Intergard 400/Epoxy
Top coat Interthane 990 / Polyurethane

High pressure hose: 20m with female ends BSP ½
Gun: Trigger operated gun
Lance: 800mm length
Nozzle: Fan Jet nozzle
